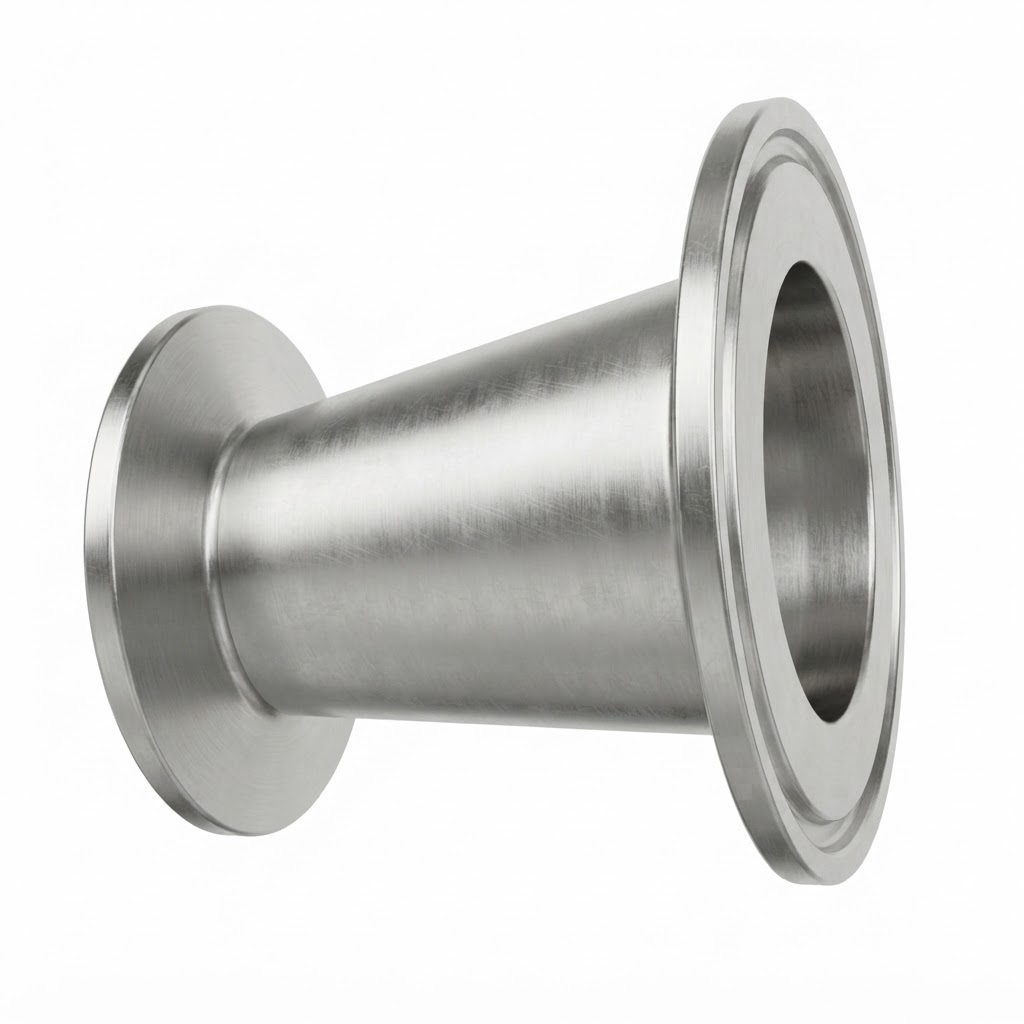

3214MP Clamp Eccentric Reducer

Tube OD	A	Max. Pressure	Part Number 304	Each	Part Number 316L	Each
3/4 x 1/2"	2.000"	700 psi @ 72° F	MIT10230	TBD	SPA10185	TBD
1" x 1/2"	3.000"	700 psi @ 72° F	MIT10231	TBD	SPA10186	TBD
1" x 3/4"	2.000"	700 psi @ 72° F	MIT10232	TBD	SPA10187	TBD
1-1/2" x 1/2"	5.000"	700 psi @ 72° F	MIT10233	TBD	SPA10188	TBD
1-1/2" x 3/4"	4.000"	700 psi @ 72° F	MIT10234	TBD	SPA10189	TBD
1-1/2" x 1"	3.000"	700 psi @ 72° F	MIT10235	TBD	SPA10190	TBD
2" x 1/2"	7.000"	700 psi @ 72° F	MIT10236	TBD	SPA10191	TBD
2" x 3/4"	6.000"	700 psi @ 72° F	MIT10237	TBD	SPA10192	TBD
2" x 1"	5.000"	700 psi @ 72° F	MIT10238	TBD	SPA10193	TBD
2" x 1-1/2"	3.000"	700 psi @ 72° F	MIT10239	TBD	SPA10194	TBD
2-1/2" x 1-1/2"	5.000"	700 psi @ 72° F	MIT10240	TBD	SPA10195	TBD
2-1/2" x 2"	3.000"	700 psi @ 72° F	MIT10241	TBD	SPA10196	TBD
3" x 1"	9.000"	700 psi @ 72° F	MIT10242	TBD	SPA10197	TBD
3" x 1-1/2"	7.000"	700 psi @ 72° F	MIT10243	TBD	SPA10198	TBD
3" x 2"	5.000"	700 psi @ 72° F	MIT10244	TBD	SPA10199	TBD
3" x 2-1/2"	3.000"	700 psi @ 72° F	MIT10245	TBD	SPA10200	TBD
4" x 1-1/2"	11.125"	700 psi @ 72° F	MIT10246	TBD	SPA10201	TBD
4" x 2"	9.125"	700 psi @ 72° F	MIT10247	TBD	SPA10202	TBD
4" x 2-1/2"	7.125"	700 psi @ 72° F	MIT10248	TBD	SPA10203	TBD
4" x 3"	5.125"	700 psi @ 72° F	MIT10249	TBD	SPA10204	TBD
6" x 3"	6.875"	700 psi @ 72° F	MIT10250	TBD	SPA10205	TBD
6" x 4"	7.000"	700 psi @ 72° F	MIT10251	TBD	SPA10206	TBD
8" x 4"	7.500"	700 psi @ 72° F	MIT10252	TBD	SPA10207	TBD
8" x 6"	7.750"	700 psi @ 72° F	MIT10253	TBD	SPA10208	TBD

·　For Use With: Air, Beverage, Dairy, Deionized Water, Food, Pharmaceuticals, Water

·　Temperature Range: See Gaskets

·　Use with 304/316L stainless steel tubes that meets ASTM A269 or ASTM A270

·　Certification: Material Certificate with Traceable Lot Number and Test Report

·　To complete a connection, you’ll need two quick-clamp fittings, a clamp, and a gasket (all sold separately).

Clamp Style Fittings are most popular for easy assembly and breakdown of process lines and equipment. Giraffe Stainless offers Clamp Fittings in T304 and T316L materials in 1/2˝ through 12˝ sizes. Gaskets for Clamp Fittings are available in several different materials, Buna-N, EPDM, Silicone, Tef-Steel®, Teflon®, and Viton®. Lightweight and heavy-duty clamps complete the unions. Giraffe Stainless’s Clamp Fittings meet all 3A requirements.

Giraffe Stainless products are warranted to be free from defects in material and workmanship for a period of one year from the date of shipment. Any product that proves to be defective shall be repaired or replaced at the option of Giraffe Stainless, providing it has been used as recommended and in strict accordance with recognized piping practices, and that has not been subject to extraordinary service, such as encountered under severe corrosive or abrasive conditions.
Giraffe Stainless makes no warranties, express or implied, other than those listed above.
Giraffe Stainless shall not be liable for any consequential, indirect, incidental or contingent damages.

Giraffe Stainless is a member of 3-A®, a voluntary organization committed to safeguarding public health and dairy product quality through a unique industry-regulated program of sanitary standards for equipment used in processing dairy foods.

Giraffe Stainless is a member of FISA, a national association of independent distributors and major manufacturers of sanitary supplies used in the food, dairy, beverage, pharmaceutical and personal care industries.
