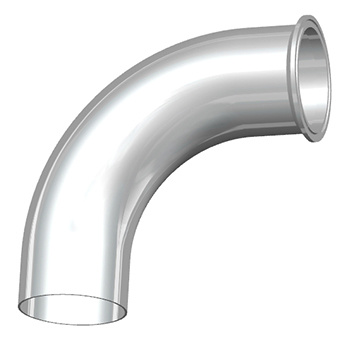

L2CM 90D Clamp X Weld Elbow Long
 |
|
· For Use With: Air, Beverage, Dairy, Deionized Water, Food, Pharmaceuticals, Water
· Max. Temperature: 250° F, except hose fittings are unrated.
· Use with 304/316L stainless steel tubes that meets ASTM A269 or ASTM A270
· Certification: Material Certificate with Traceable Lot Number and Test Report
· Specifications Met: 3-A Certified 63-04
· 304 stainless steel fittings have very good corrosion resistance. 316 stainless steel fittings have excellent corrosion resistance.
Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 12˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures.083 (14 ga), 6˝ and 8˝ .109 (12 ga), 10" and 12" .120(11 ga)
Giraffe Stainless products are warranted to be free from defects in material and workmanship for a period of one year from the date of shipment. Any product that proves to be defective shall be repaired or replaced at the option of Giraffe Stainless, providing it has been used as recommended and in strict accordance with recognized piping practices, and that has not been subject to extraordinary service, such as encountered under severe corrosive or abrasive conditions. Giraffe Stainless makes no warranties, express or implied, other than those listed above. Giraffe Stainless shall not be liable for any consequential, indirect, incidental or contingent damages.
Giraffe Stainless is a member of 3-A®, a voluntary organization committed to safeguarding public health and dairy product quality through a unique industry-regulated program of sanitary standards for equipment used in processing dairy foods.
