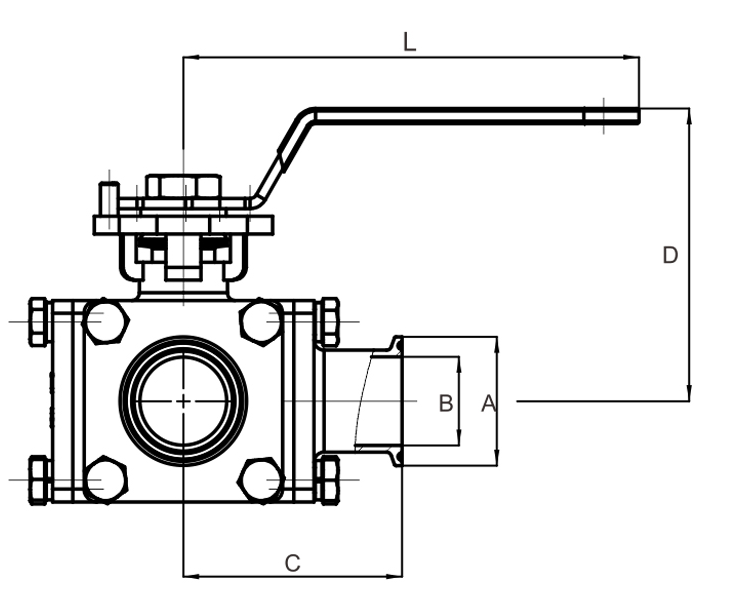

| Tube OD |
A |
B |
C |
D |
E |
Max. Pressure |
Part number 316L |
Price/each |
| 1" |
1.984" |
0.870" |
4.528" |
3.740" |
6.000" |
1000 psi @ 400° F |
SIG/25-1/316L |
TBD |
| 1-1/2" |
1.984" |
1.370" |
5.433" |
4.528" |
6.850" |
1000 psi @ 400° F |
SIG/25-1.5/316L |
TBD |
| 2" |
2.516" |
1.870" |
6.142" |
4.764" |
8.031" |
1000 psi @ 400° F |
SIG/25-2/316L |
TBD |
| 2-1/2" |
3.047" |
2.370" |
6.693" |
5.276" |
8.965" |
800 psi @ 400° F |
SIG/25-2.5/316L |
TBD |
| 3" |
3.579" |
2.870" |
7.638" |
5.276" |
10.339" |
800 psi @ 400° F |
SIG/25-3/316L |
TBD |
| 4" |
4.682" |
3.834" |
9.528" |
5.866" |
12.559" |
800 psi @ 400° F |
SIG/25-4/316L |
TBD |
|
· For Use With: Air, Beverage, Dairy, Deionized Water, Food, Pharmaceuticals, Water
· CF8M(316L) stainless steel
· Direct mounting ISO5211 pad facilitates easy antomation and a smaller valve footprint for restrictive applications
· Spring loaded washers create live-loaded, self-adjusting stem assembly reducing maintenance costs
· Precision stainless steel balls reduce torque and friction losses while entending seat life
· Suitable for high cycle applications in manual or automated conditions double seal leak protection
· Using body cavity fillers meets FDA, USDA&3A requirements
· Available options: Tri-Clamp or Butt-weld; Cavity filled is standard; L-Port or T-Port configuration

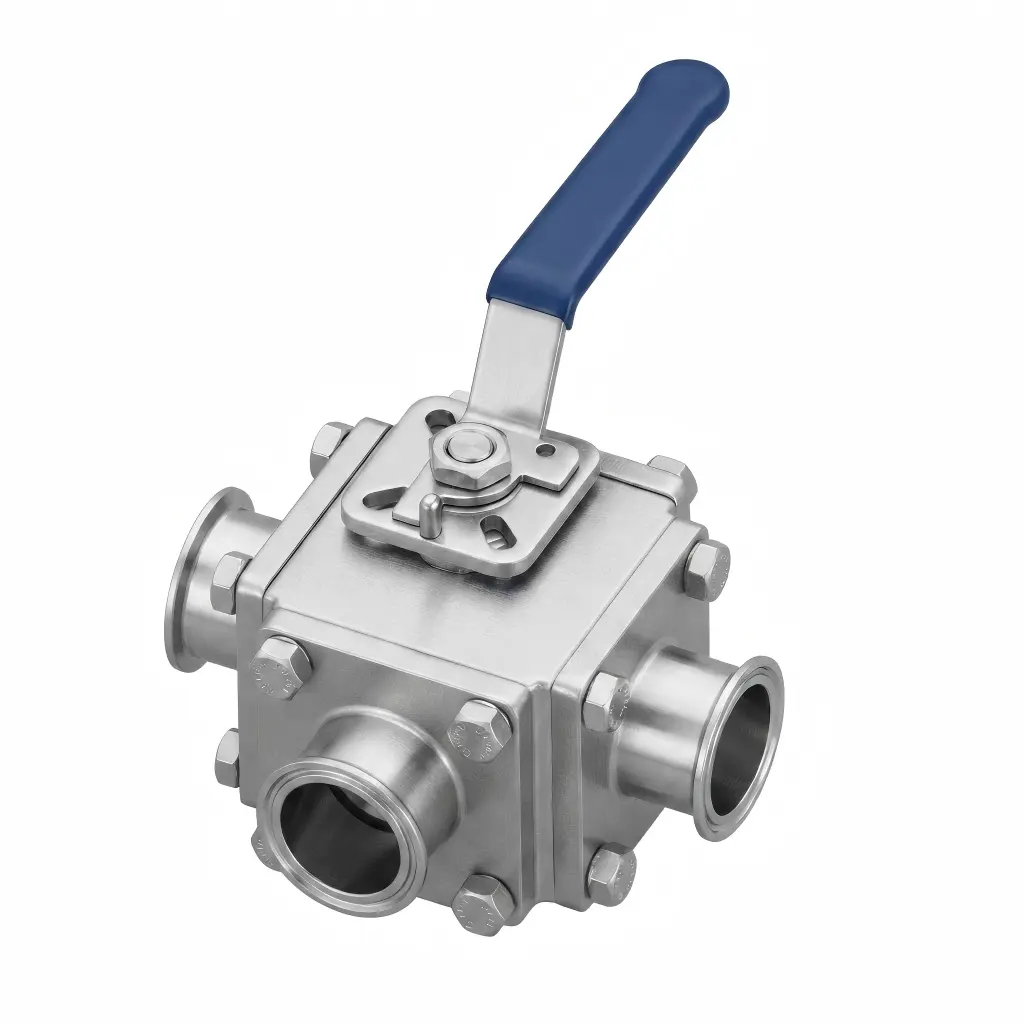

SIG/25 Multiport 3-way ball valve With sanitary quick-clamp connections for easy disassembly in systems that require frequent cleaning, these valves are often used to divert flow between ports in food and beverage applications. Any port can be used as an inlet or an outlet. Valves cannot shut off flow. All have a 316 stainless steel body for excellent corrosion resistance. They are full port, so they do not restrict flow.
Valves with L-pattern flow can direct flow from the inlet port to either outlet port.
Valves with T-pattern flow can direct flow from the inlet port to either port at full capacity or direct flow to both outlet ports simultaneously at reduced capacity.
Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.
