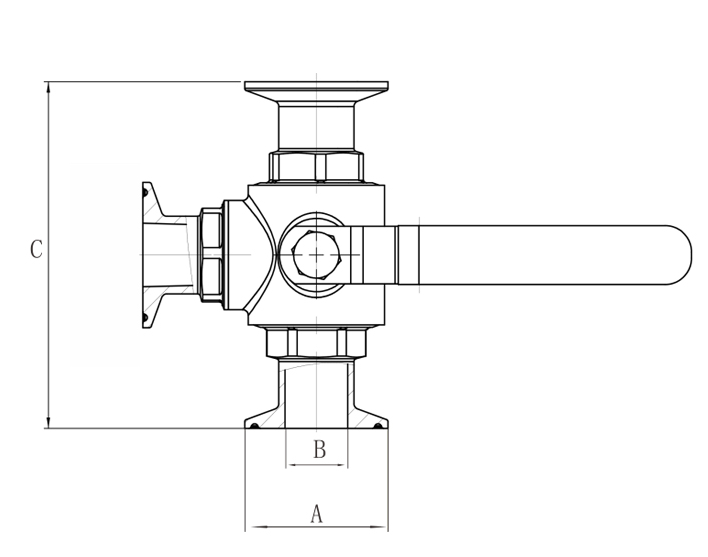

| Tube OD |
A |
B |
C |
Max. Pressure |
Part number 304 |
Price/each |
Part number 316L |
Price/each |
| 3/4" |
0.984" |
0.620" |
3.980" |
150 psi @ 200° F |
SIG/42-0.75/304 |
TBD |
SIG/42-0.75/316L |
TBD |
| 1" |
1.984" |
0.870" |
4.720" |
150 psi @ 200° F |
SIG/42-1/304 |
TBD |
SIG/42-1/316L |
TBD |
| 1-1/2" |
1.984" |
1.370" |
6.020" |
150 psi @ 200° F |
SIG/42-1.5/304 |
TBD |
SIG/42-1.5/316L |
TBD |
| 2" |
2.516" |
1.870" |
6.460" |
150 psi @ 200° F |
SIG/42-2/304 |
TBD |
SIG/42-2/316L |
TBD |
| 2-1/2" |
3.047" |
2.370" |
7.800" |
150 psi @ 200° F |
SIG/42-2.5/304 |
TBD |
SIG/42-2.5/316L |
TBD |
| 3" |
3.579" |
2.870" |
8.310" |
150 psi @ 200° F |
SIG/42-3/304 |
TBD |
SIG/42-3/316L |
TBD |
| 4" |
4.682" |
3.834" |
10.240" |
150 psi @ 200° F |
SIG/42-4/304 |
TBD |
SIG/42-4/316L |
TBD |
|
· PTFE Seats with O-ring Backing for Low Operating Torque
· Can be equipped with manaul or pneumatic controls
· Standard finish: external and internal mirror polishing Ra≤20
· Maximum Operating Pressure: 150PSI
· Easy to disassemble and maintenance
· Available options: L-Port or T-Port configuration
SIG/42 3-way ball valve With sanitary quick-clamp connections for easy disassembly in systems that require frequent cleaning, these valves are often used to divert flow between ports in food and beverage applications. Any port can be used as an inlet or an outlet. Valves cannot shut off flow. All have a 316 stainless steel body for excellent corrosion resistance. They are full port, so they do not restrict flow.
Valves with L-pattern flow can direct flow from the inlet port to either outlet port.
Valves with T-pattern flow can direct flow from the inlet port to either port at full capacity or direct flow to both outlet ports simultaneously at reduced capacity.
Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.
Giraffe Stainless products are warranted to be free from defects in material and workmanship for a period of one year from the date of shipment. Any product that proves to be defective shall be repaired or replaced at the option of Giraffe Stainless, providing it has been used as recommended and in strict accordance with recognized piping practices, and that has not been subject to extraordinary service, such as encountered under severe corrosive or abrasive conditions.
Giraffe Stainless makes no warranties, express or implied, other than those listed above.
Giraffe Stainless shall not be liable for any consequential, indirect, incidental or contingent damages.
Giraffe Stainless is a member of 3-A®, a voluntary organization committed to safeguarding public health and dairy product quality through a unique industry-regulated program of sanitary standards for equipment used in processing dairy foods.
