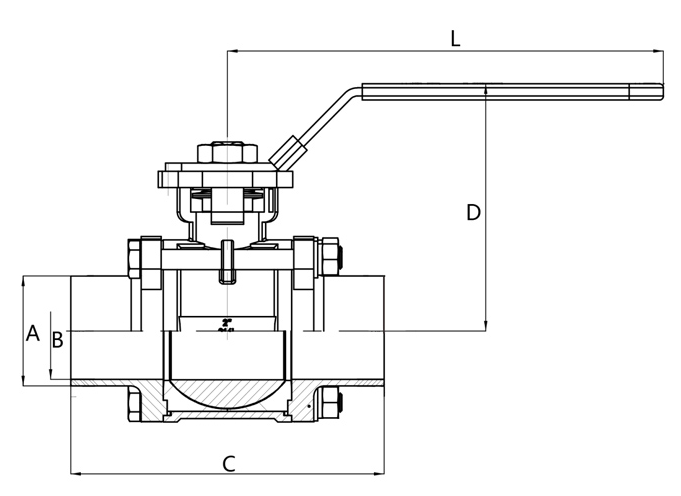

| Tube OD |
A |
B |
C |
D |
L |
Max. Pressure |
Part number 304 |
Price/each |
Part number 316L |
Price/each |
| 1/2" |
0.500" |
0.370" |
3.543" |
2.441" |
5.118" |
1000 psi @ 400° F |
SIG/82-0.5/304 |
TBD |
SIG/82-0.5/316L |
TBD |
| 3/4" |
0.750" |
0.620" |
4.016" |
2.677" |
5.118" |
1000 psi @ 400° F |
SIG/82-0.75/304 |
TBD |
SIG/82-0.75/316L |
TBD |
| 1" |
1.000" |
0.870" |
4.528" |
3.504" |
6.693" |
1000 psi @ 400° F |
SIG/82-1/304 |
TBD |
SIG/82-1/316L |
TBD |
| 1-1/2" |
1.500" |
1.370" |
5.433" |
4.528" |
8.465" |
1000 psi @ 400° F |
SIG/82-1.5/304 |
TBD |
SIG/82-1.5/316L |
TBD |
| 2" |
2.000" |
1.870" |
6.142" |
4.764" |
8.465" |
1000 psi @ 400° F |
SIG/82-2/304 |
TBD |
SIG/82-2/316L |
TBD |
| 2-1/2" |
2.500" |
2.370" |
6.693" |
5.433" |
8.465" |
800 psi @ 400° F |
SIG/82-2.5/304 |
TBD |
SIG/82-2.5/316L |
TBD |
| 3" |
3.000" |
2.870" |
7.638" |
6.102" |
12.795" |
800 psi @ 400° F |
SIG/82-3/304 |
TBD |
SIG/82-3/316L |
TBD |
| 4" |
4.000" |
3.834" |
9.528" |
6.575" |
12.795" |
800 psi @ 400° F |
SIG/82-4/304 |
TBD |
SIG/82-4/316L |
TBD |
| 6" |
6.000" |
5.782" |
15.512" |
9.764" |
26.772" |
800 psi @ 400° F |
SIG/82-6/304 |
TBD |
SIG/82-6/316L |
TBD |
|

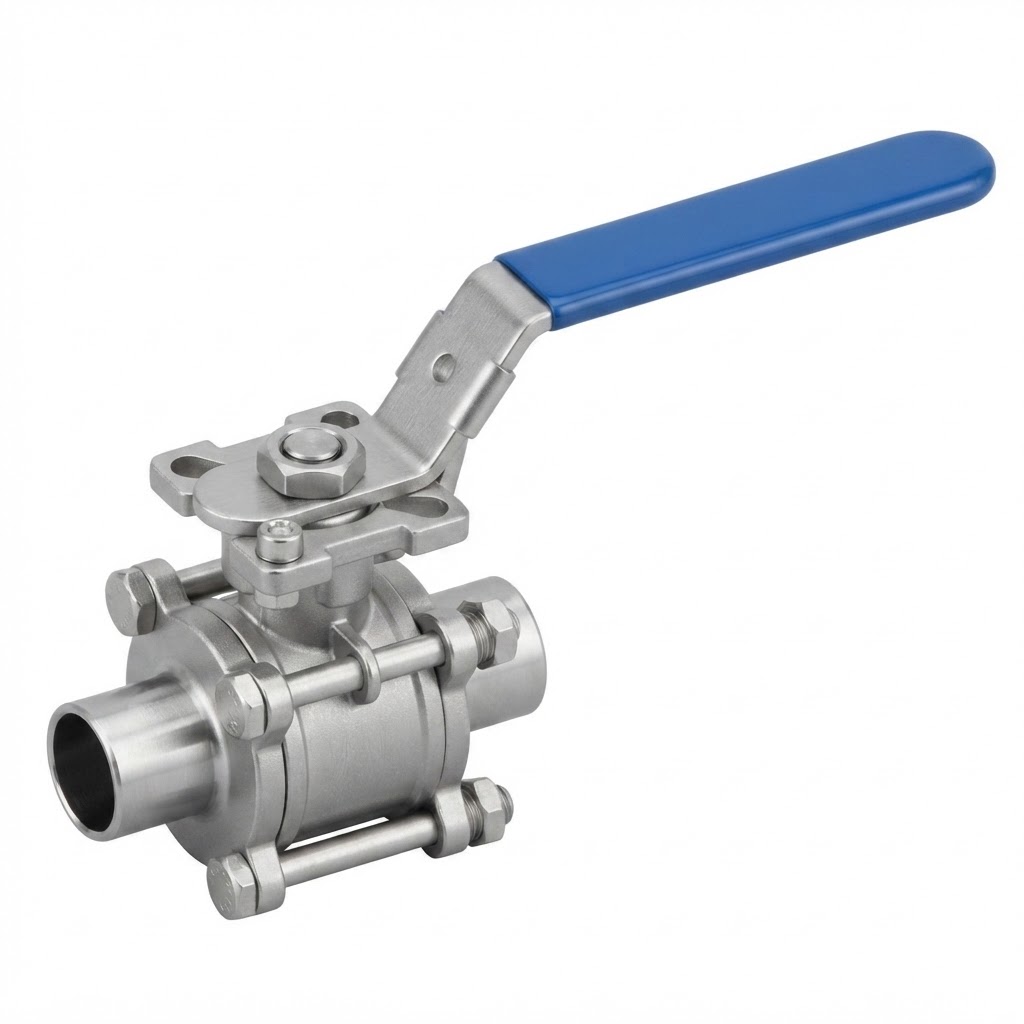

· For Use With: Air, Beverage, Dairy, Deionized Water, Food, Pharmaceuticals, Water
· ASTM 316L Stainless Steel
· Double sealing stem design
· Highly polished internals and end caps with 20 Ra finish
· All materials comply with FDA, USDA & 3A requirements
· Full Port Design for a lower pressure drop and less turbulent flow
· Investment cast body and end caps
· Standard Tri-Clamp or butt weld ends. Other options available.
· Precision stainless steel balls reduce torque and friction losses while entending seat life
