Sanitary Manual Butterfly Valve mod.SIG/19

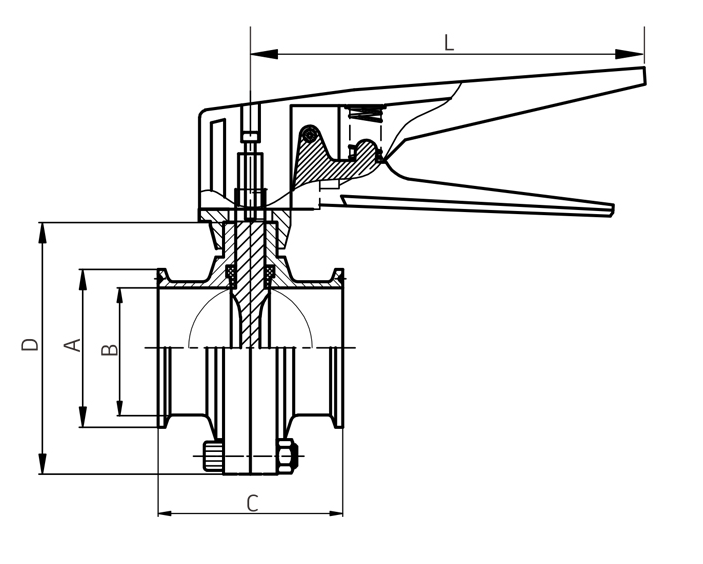

Tube OD	A	B	C	D	L	Max. Pressure	Part number 304	Price/each	Part number 316L	Price/each
1/2"	0.984"	0.370"	2.598"	3.071"	6.181"	145 psi @ 200° F	SIG/19-0.5/304	TBD	SIG/19-0.5/316L	TBD
3/4"	0.984"	0.620"	2.598"	3.071"	6.181"	145 psi @ 200° F	SIG/19-0.75/304	TBD	SIG/19-0.75/316L	TBD
1"	1.984"	0.870"	2.598"	3.071"	6.181"	145 psi @ 200° F	SIG/19-1/304	TBD	SIG/19-1/316L	TBD
1-1/2"	1.984"	1.370"	2.756"	3.386"	6.181"	145 psi @ 200° F	SIG/19-1.5/304	TBD	SIG/19-1.5/316L	TBD
2"	2.516"	1.870"	2.992"	4.016"	6.181"	145 psi @ 200° F	SIG/19-2/304	TBD	SIG/19-2/316L	TBD
2-1/2"	3.047"	2.370"	3.150"	4.527"	6.181"	145 psi @ 200° F	SIG/19-2.5/304	TBD	SIG/19-2.5/316L	TBD
3"	3.579"	2.870"	3.307"	5.039"	6.181"	145 psi @ 200° F	SIG/19-3/304	TBD	SIG/19-3/316L	TBD
4"	4.682"	3.834"	4.094"	6.063"	6.181"	145 psi @ 200° F	SIG/19-4/304	TBD	SIG/19-4/316L	TBD

·　For Use With: Air, Beverage, Dairy, Deionized Water, Food, Pharmaceuticals, Water

·　All wetted surfaces are sanitary finish ≤ 32Ra

·　Mirror finish disc provides an even flow preventing obstructions and restrictions.

·　Opposing body bolt design prevents loosening between body sections due to vibration and operation, and provides positive sealing.

·　FDA approved available options: Silicone, EPDM, and Viton

·　12-Position SS304, Spring loaded level lock handle

·　Standard Tri-Clamp or butt weld ends. Other options available.

·　Suitable for actuation with pneumatic electric actuators

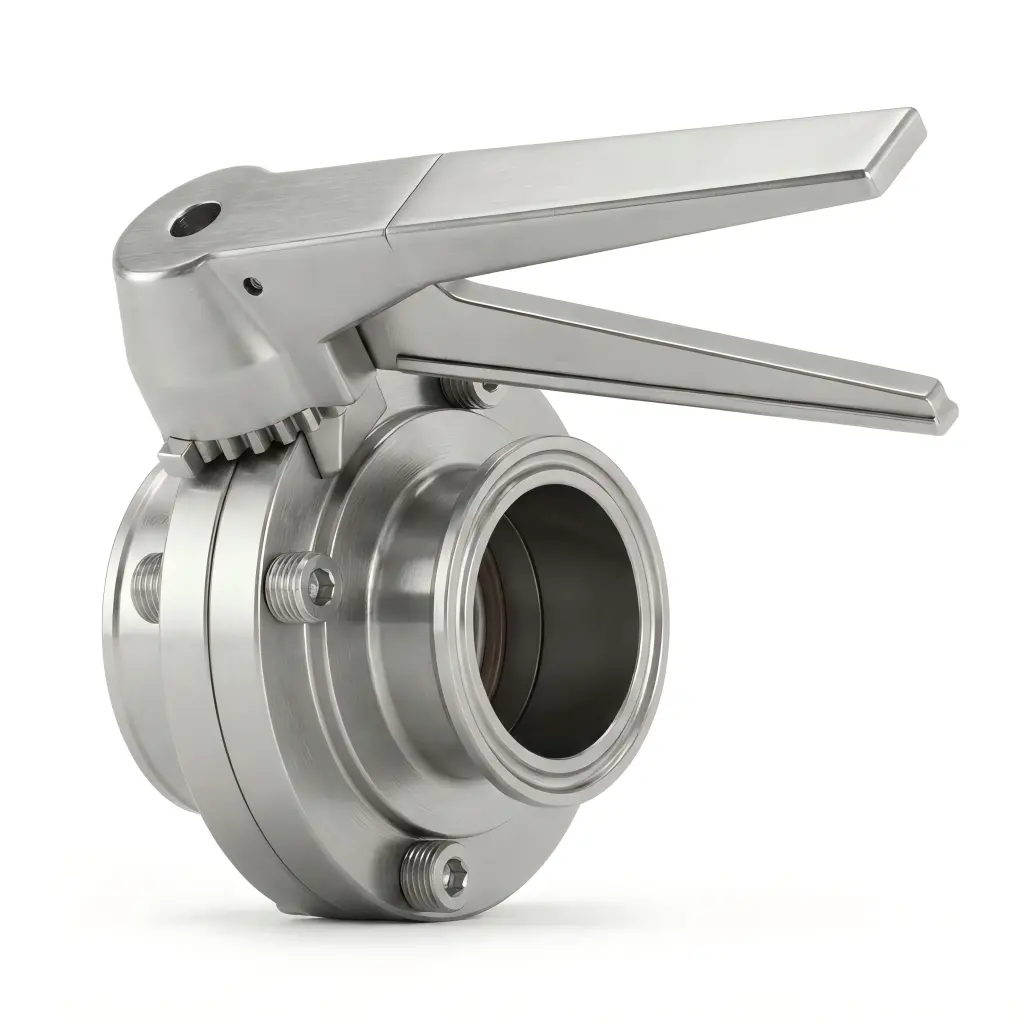

SIG/19 series is a manual type sanitary tri clamp butterfly valve with tri-clamp / tri-clamp ends and stainless spring loaded lever lock handle, which is widely used in process piping systems for isolation and control. SIG/19 butterfly valve operates manually by Stainless level handle (12-position), Manual handle, pneumatic actuator and electric actuator are interchangeable.
