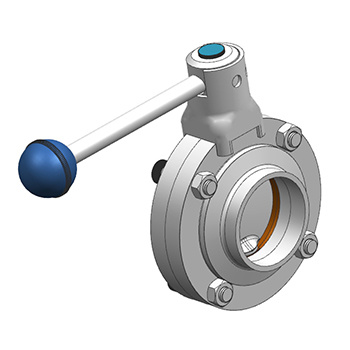

| Tube OD |

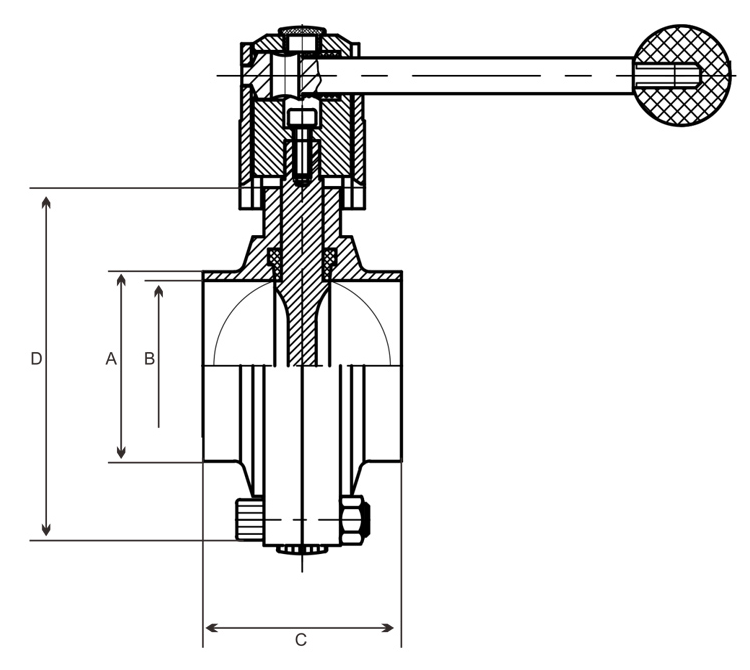

A |
B |
C |
D |
Max. Pressure |
Part number 304 |
Price/each |
Part number 316L |
Price/each |
| 1/2" |
0.500" |
0.370" |
1.969" |
3.071" |
145 psi @ 450° F |
SIG/79-0.5/304 |
TBD |
SIG/79-0.5/316L |
TBD |
| 3/4" |
0.750" |
0.620" |
1.969" |
3.071" |
145 psi @ 450° F |
SIG/79-0.75/304 |
TBD |
SIG/79-0.75/316L |
TBD |
| 1" |
1.000" |
0.870" |
1.969" |
3.071" |
145 psi @ 450° F |
SIG/79-1/304 |
TBD |
SIG/79-1/316L |
TBD |
| 1-1/2" |
1.500" |
1.370" |
1.969" |
3.386" |
145 psi @ 450° F |
SIG/79-1.5/304 |
TBD |
SIG/79-1.5/316L |
TBD |
| 2" |
2.000" |
1.870" |
2.047" |
4.016" |
145 psi @ 450° F |
SIG/79-2/304 |
TBD |
SIG/79-2/316L |
TBD |
| 2-1/2" |
2.500" |
2.370" |
2.205" |
4.527" |
145 psi @ 450° F |
SIG/79-2.5/304 |
TBD |
SIG/79-2.5/316L |
TBD |
| 3" |
3.000" |
2.870" |
2.205" |
5.039" |
145 psi @ 450° F |
SIG/79-3/304 |
TBD |
SIG/79-3/316L |
TBD |
| 4" |
4.000" |
3.834" |
2.520" |
6.063" |
145 psi @ 450° F |
SIG/79-4/304 |
TBD |
SIG/79-4/316L |
TBD |
| 6" |
6.000" |
5.782" |
3.543" |
8.464" |
145 psi @ 450° F |
SIG/79-6/304 |
TBD |
SIG/79-6/316L |
TBD |
|
· For Use With: Air, Beverage, Dairy, Deionized Water, Food, Pharmaceuticals, Water
· All wetted surfaces are sanitary finish ≤ 32Ra
· Mirror finish disc provides an even flow preventing obstructions and restrictions.
· Opposing body bolt design prevents loosening between body sections due to vibration and operation, and provides positive sealing.
· Polyacetal bushings for the valve disc reduce friction and increase cycle life
· FDA approved available options: Silicone, EPDM, and Viton
· 3-Position SS304, Spring loaded pull handle
· Standard Tri-Clamp or butt weld ends. Other options available.
· Suitable for actuation with pneumatic electric actuators
