| Tube OD |

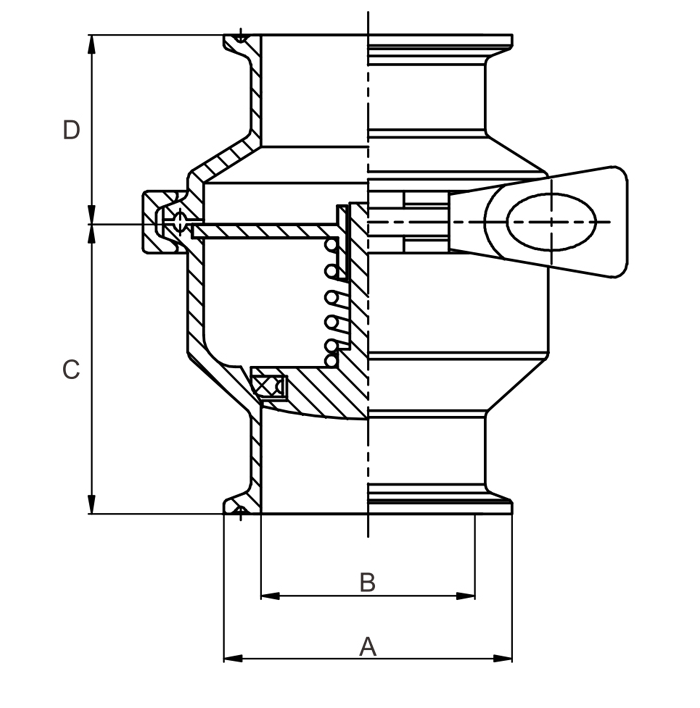

A |
B |
C |
D |
Max. Pressure |
Part number 304 |
Price/each |
Part number 316L |
Price/each |
| 1/2" |
0.984" |
0.370" |
1.850" |
1.063" |
150 psi @ 200° F |
SIG/55-0.5/304 |
TBD |
SIG/55-0.5/316L |
TBD |
| 3/4" |
0.984" |
0.620" |
1.850" |
1.063" |
150 psi @ 200° F |
SIG/55-0.75/304 |
TBD |
SIG/55-0.75/316L |
TBD |
| 1" |
1.984" |
0.870" |
2.264" |
1.476" |
150 psi @ 200° F |
SIG/55-1/304 |
TBD |
SIG/55-1/316L |
TBD |
| 1-1/2" |
1.984" |
1.370" |
2.264" |
1.476" |
150 psi @ 200° F |
SIG/55-1.5/304 |
TBD |
SIG/55-1.5/316L |
TBD |
| 2" |
2.516" |
1.870" |
2.500" |
1.594" |
150 psi @ 200° F |
SIG/55-2/304 |
TBD |
SIG/55-2/316L |
TBD |
| 2-1/2" |
3.047" |
2.370" |
2.835" |
1.654" |
150 psi @ 200° F |
SIG/55-2.5/304 |
TBD |
SIG/55-2.5/316L |
TBD |
| 3" |
3.579" |
2.870" |
3.150" |
1.693" |
150 psi @ 200° F |
SIG/55-3/304 |
TBD |
SIG/55-3/316L |
TBD |
| 4" |
4.682" |
3.834" |
3.366" |
1.988" |
150 psi @ 200° F |
SIG/55-4/304 |
TBD |
SIG/55-4/316L |
TBD |
|

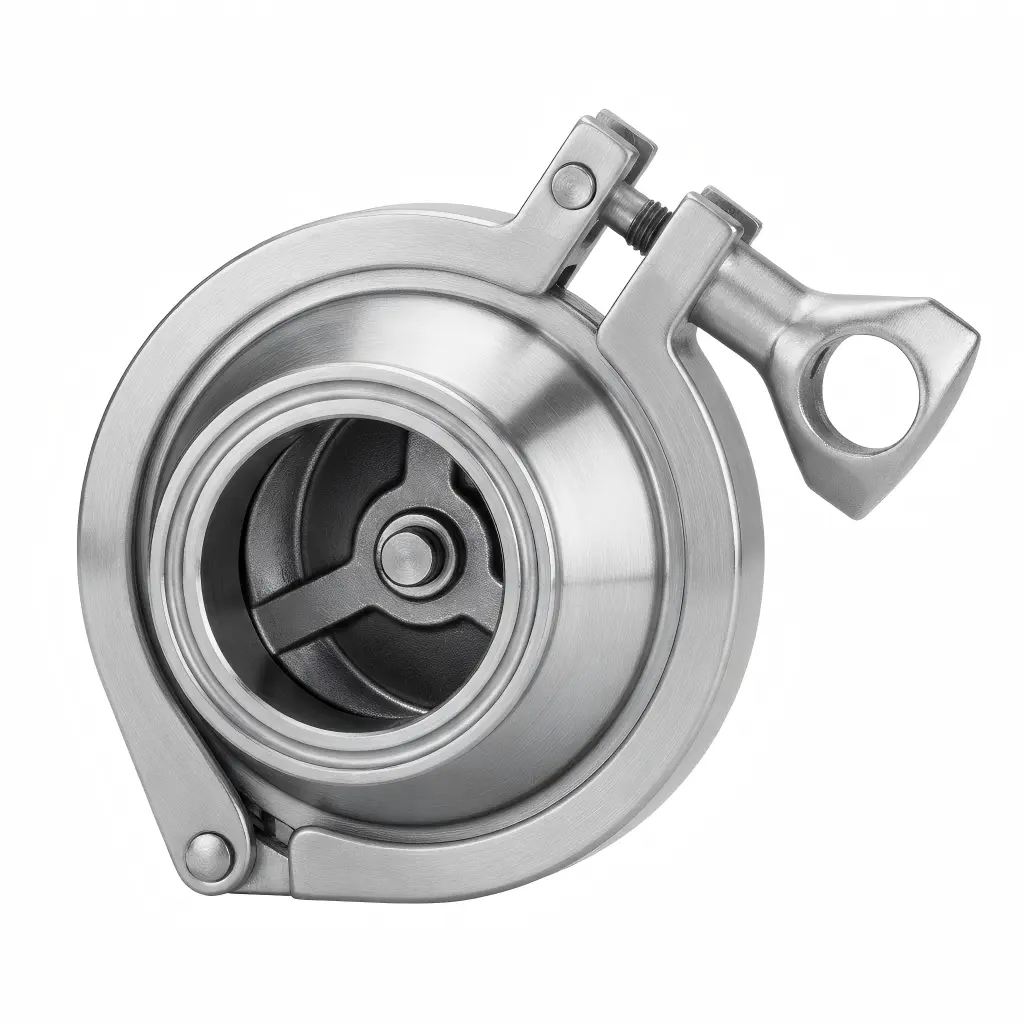

· Precision machined ASTM 316L body, stem and disc
· 25Ra polished body and internals
· Angle design for precision open and close
· Suitable with various liquids
· Standard Tri-Clamp or butt weld ends. Other options available.
· Standard EPDM seal ring, Viton and silicone available option
· Maximum Operating Pressure: 150PSI
· Operating Temperature Range: 15°f to 200°f
· Field Serviceable(no Special Tools Required)
