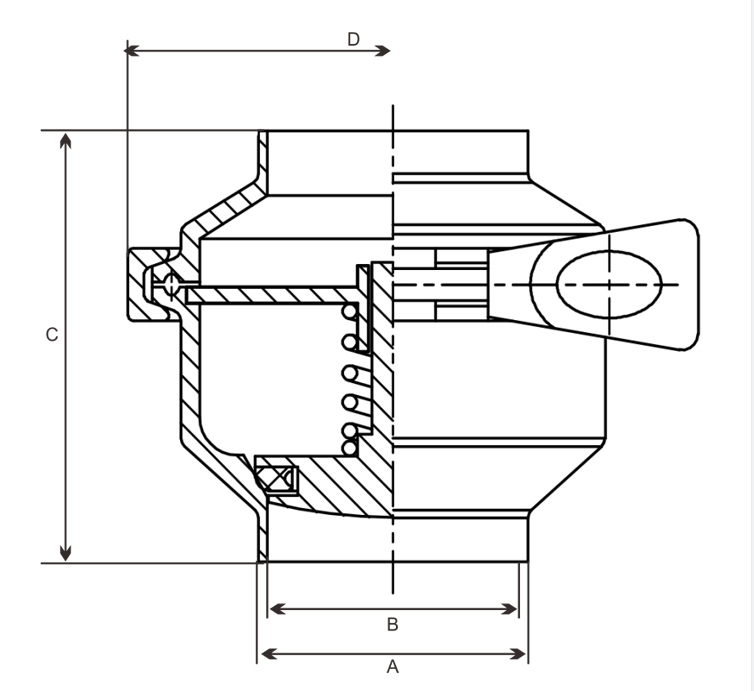

| Tube OD |
A |
B |
C |
D |
Max. Pressure |
Part number 304 |
Price/each |
Part number 316L |
Price/each |
| 3/4" |
0.750" |
0.620" |
2.126" |
2.126" |
150 psi @ 200° F |
SIG/80-0.5/304 |
TBD |
SIG/80-0.5/316L |
TBD |
| 1" |
1.000" |
0.870" |
2.756" |
3.425" |
150 psi @ 200° F |
SIG/80-0.75/304 |
TBD |
SIG/80-0.75/316L |
TBD |
| 1-1/2" |
1.500" |
1.370" |
2.756" |
3.425" |
150 psi @ 200° F |
SIG/80-1/304 |
TBD |
SIG/80-1/316L |
TBD |
| 2" |
2.000" |
1.870" |
3.150" |
3.937" |
150 psi @ 200° F |
SIG/80-1.5/304 |
TBD |
SIG/80-1.5/316L |
TBD |
| 2-1/2" |
2.500" |
2.370" |
3.543" |
4.528" |
150 psi @ 200° F |
SIG/80-2/304 |
TBD |
SIG/80-2/316L |
TBD |
| 3" |
3.000" |
2.870" |
3.937" |
5.039" |
150 psi @ 200° F |
SIG/80-2.5/304 |
TBD |
SIG/80-2.5/316L |
TBD |
| 4" |
4.000" |
3.834" |
4.173" |
6.457" |
150 psi @ 200° F |
SIG/80-3/304 |
TBD |
SIG/80-3/316L |
TBD |
|

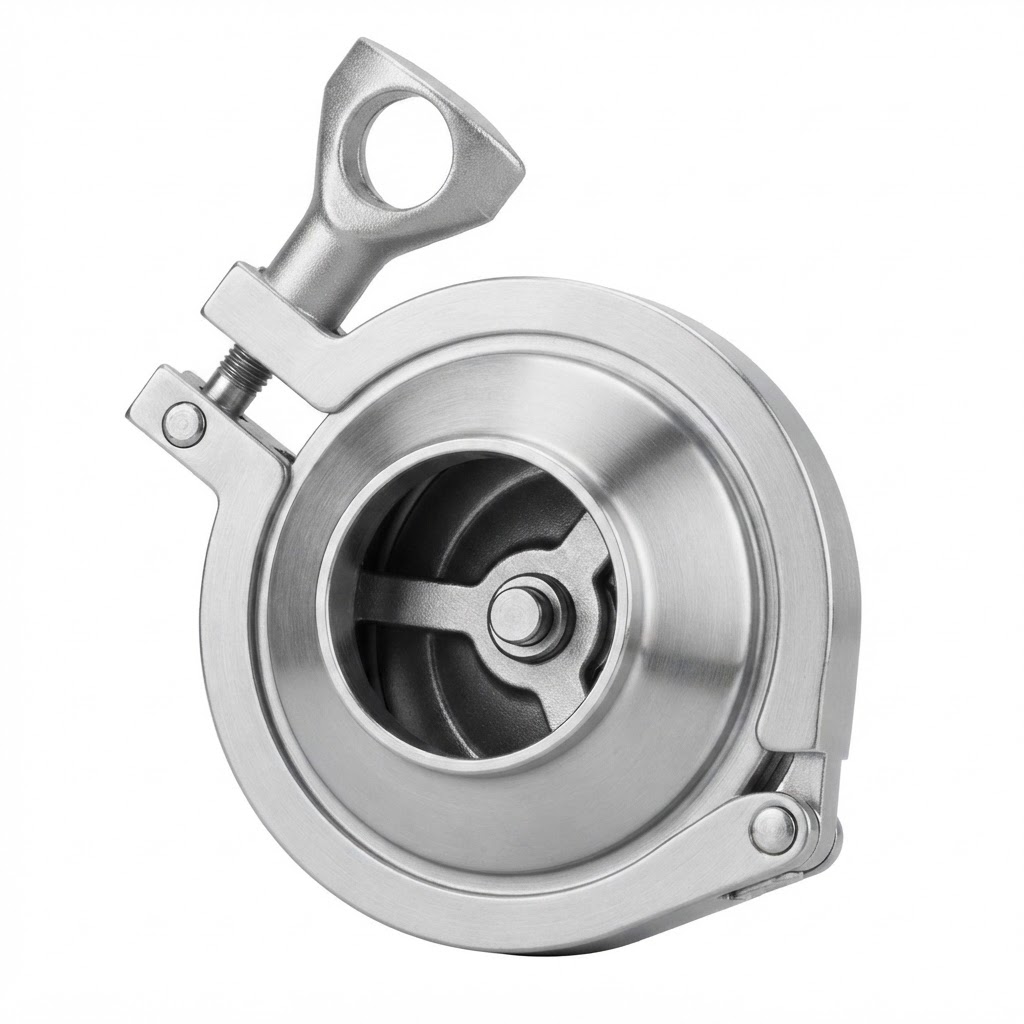

· Precision machined ASTM 316L body, stem and disc
· 25Ra polished body and internals
· Angle design for precision open and close
· Suitable with various liquids
· Standard Tri-Clamp or butt weld ends. Other options available.
· Standard EPDM seal ring, Viton and silicone available option
· Maximum Operating Pressure: 150PSI
· Operating Temperature Range: 15°f to 200°f
· Field Serviceable(no Special Tools Required)
